In this article, we are going to see how to copy or SCP files and directories from local to remote. Control machine to the remote server.

We are going to learn how to SCP files from local to the remote host

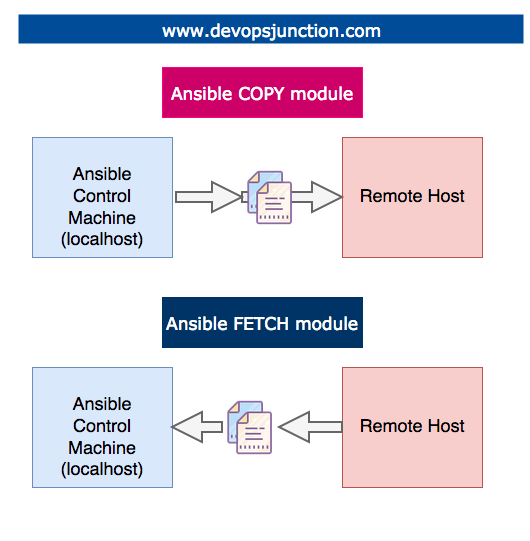

Ansible has dedicated modules to support the copy between local and remote servers in both directions.

The copy module -  to copy files from ansible control machine local to the remote machine, host/host group

The fetch module - to copy files from remote host to local  (control machine)

In this post, we are going to practice a few examples of copy module and learn how to SCP files from local to remote in ansible.

If you are looking for a way to copy files between remote servers ( remote server to another remote server )  check out this article

If you are new to Ansible and wondering what is Ansible ad hoc command and Ansible playbooks click on the highlighted text (hyperlinks) to read our startup articles.

With no further ado, let's go to the objective.



Ansible copy files

How to copy files with Ansible - Local to Remote

The following playbook copies a file named index.html from the Ansible control machine ( localhost mac/windows/Linux where we run the playbook) to the remote server

Remember Ansible is agentless so you do not have to install Ansible on the remote machine.

All you need is an SSH connection to the remote server. ( with password or SSH key)

- name: Ansible Copy Example Local to Remote
  hosts: remoteserver
  tasks:
    - name: copying file with playbook
      become: true
      copy:
        src: ~/Downloads/index.html
        dest: /var/www/html
        owner: apache
        group: apache
        mode: 0644

Let me explain this in detail

  • hosts:  A target host group should be already defined in the ansible inventory aka hosts file
  • tasks: all the tasks (plays) would be defined under this
  • become:  this is to tell ansible to execute the corresponding task as a sudo user root unless specified any other user with become_user
  • copy: module name we are going to use in this task
    • src: source file path on the local machine where the playbook or ad-hoc command is invoked ( can set ansible to look for the file in remote server using remote_src as well )
    • dest:  destination path on the remote server/host where the file should be copied to
    • owner: Owner of the file at the destination server once copied
    • group: Group of the file at the destination server once copied
    • mode: setting the permission of the file after copying. 0644 would be set as permission on the filerw- r – r--

this can be executed in a single line as an ad hoc command as well.

ansible remoteserver1 -m copy -a "src=~/Downloads/index.html dest=/var/www/html owner=apache group=apache mode=0644"

Here is the execution output of these commands in a short clip



How to copy directories with Ansible - Local to Remote

You can copy directories with Ansible copy module. But there are two variations while copying the directory

  • Type1: Copy the Source Directory's contents (but not the directory)
  • Type2: Copy the Source Directory and its contents

while the preceding key points look similar, they are not.

ansible copy directory

In Type#1 only the contents of the src directory would be copied to the destination directory.

In Type#2, Ansible copies the directory to the remote server along with the content of the directory.  Ansible would take care of creating the new directory at the remote server

Hope the following image with tree command output helps to understand this point.



Type#1 Copy directory's content with ansible in a recursive manner

In this Type, Only the Directory's content would be copied. the content can be a directory(subdirectory) or a file.

This is an ansible AD HOC command to copy a directory's content to the remote server

ansible remoteserver -m copy -a "src=~/Downloads/logos/ dest=/var/www/html/ owner=apache group=apache mode=0644 " -i ansible_hosts -b

You need to notice that there is a / at the end of src path~/Downloads/logos/  If there is no slash at the end that is Type#2

Refer the following screenshot of executing this ansible ad hoc command and the results on the remote dest directory.

ansible copy directories example

This is a playbook form of the same ad hoc command

- name: Ansible Copy Directory Example Local to Remote
  hosts: remoteserver
  tasks:
    - name: Copying the Directory's contents (sub directories/files)
      become: true
      copy:
        src: ~/Downloads/logos/
        dest: /var/www/html
        owner: apache
        group: apache
        mode: 0644





Type#2 Copy directory and it's content with ansible in a recursive manner

In this Type, a directory and its content both would be copied to the remote server.

A new directory might be created on the destination server in the same name matching the src.

This is an ansible AD HOC command to copy a directory to the remote server

ansible remoteserver -m copy -a "src=~/Downloads/logos dest=/var/www/html/ owner=apache group=apache mode=0644 " -i ansible_hosts -b

You need to notice that there is no / at the end of src path. It is just ~/Downloads/logos  If you put a slash at the end that is Type#1

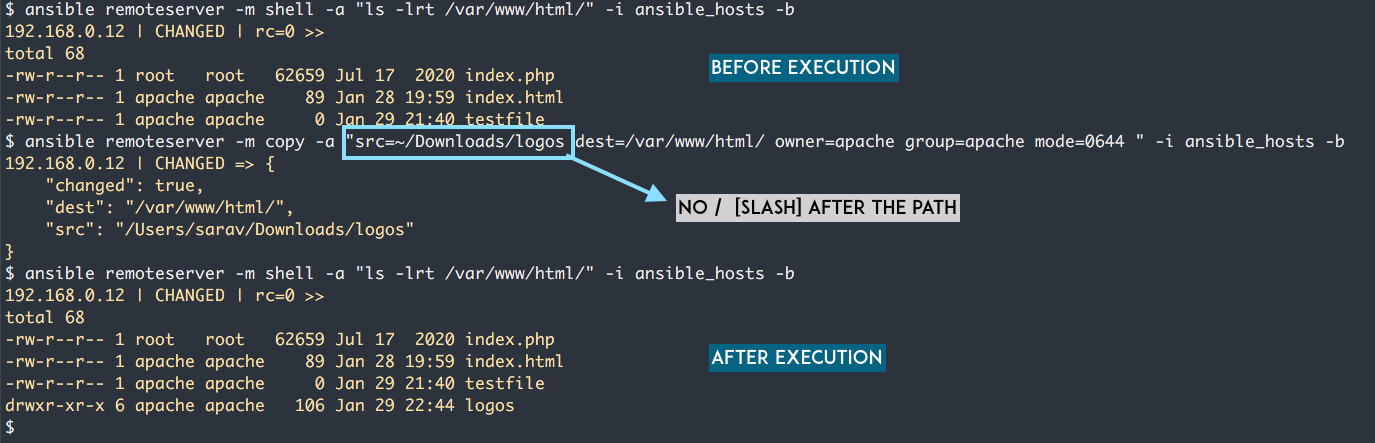

Refer the following screenshot of executing this ansible ad hoc command and the results on the remote dest directory.

ansible copy directories

- name: Ansible Copy Directory Example Local to Remote
  hosts: remoteserver
  tasks:
    - name: Copying the Directory and its contents
      become: true
      copy:
        src: ~/Downloads/logos
        dest: /var/www/html
        owner: apache
        group: apache
        mode: 0644





We have a continuation of this post covering the ansible fetch module and how to copy remote to the local machine. ( right now in progress )

Stay subscribed and be informed.

For now.  Cheers
